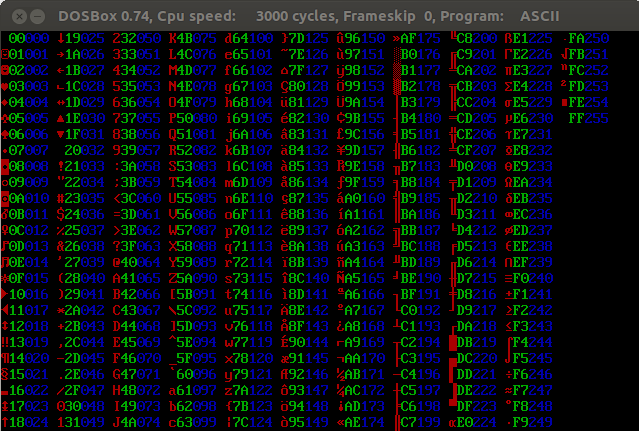

汇编例子之修改B800显存段输出ascii码表

lines equ 19h
row_bytes equ 160 ;显存每行160bytes
col_bytes equ 14d
bottom_addr equ lines*row_bytes
data segment
table db '0','1','2','3','4','5','6','7','8','9','A','B','C','D','E','F'
data ends

code segment
assume cs:code,ds:data
start:
;清屏
    MOV AX,3
    INT 10H
    mov ax,data
    mov ds,ax
;设置ES为显存起始地址
    mov ax,0B800H ;字符模式
    mov es,ax
    xor bx,bx
    xor si,si
    xor di,di ;DI清0
    xor cx,cx
nextc:
    ;输出ascii
    mov dh,04h ;颜色
    mov dl,cl
    mov es:[bx+di],dx
    ;输出hex
    mov dh,02h ;颜色
    mov si,cx
    push cx
    mov cl,4
    shr si,cl
    pop cx
    mov dl,byte ptr table[si]
    mov es:[bx+di+2],dx
    mov si,cx
    and si,0fh
    mov dl,byte ptr table[si]
    mov es:[bx+di+4],dx
    ;输出dec
 mov dh,01h ;颜色
 mov ax,cx
 ;百位数
 mov dl,100
 div dl
 mov dl,al
 add dl,30h ;转为ascii码
    mov es:[bx+di+6],dx
    ;十位数
    mov al,ah
    mov ah,0
    mov dl,10
    div dl
    add ax,3030h ;转为ascii码
    mov dl,al
    mov es:[bx+di+8],dx
    ;个位数
    mov dl,ah
    mov es:[bx+di+10],dx
    add bx,row_bytes ;跳到下一行
    cmp bx,bottom_addr
    jb no_bottom
    xor bx,bx
    add di,col_bytes
no_bottom:
    inc cx ;ascii增加
    cmp cx,255
    jbe nextc
    MOV AH,0
    INT 16H
    mov ax,4C00H
    int 21H
code ends
end start

代码转载自百度知道：点击打开链接
